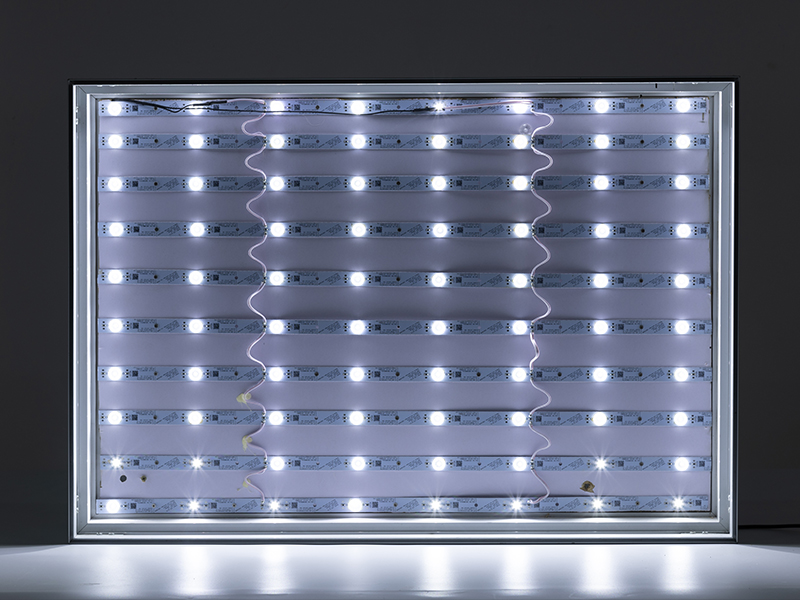

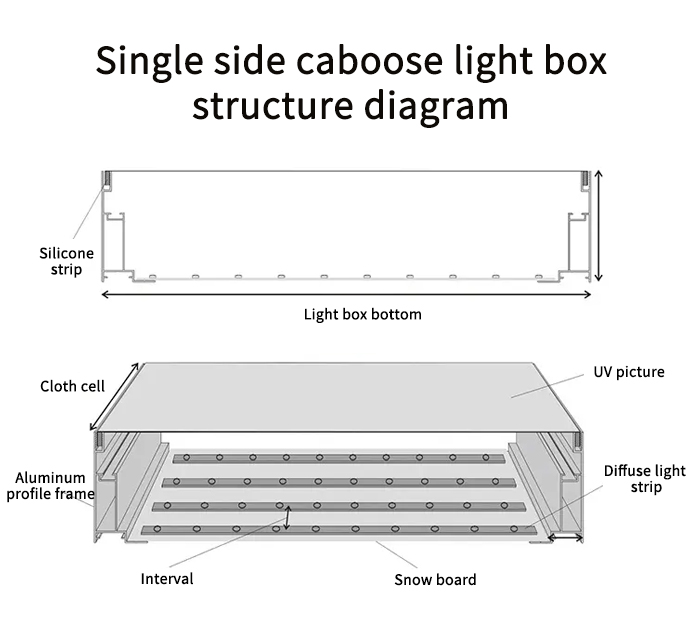

A single-sided fabric light box primarily consists of four parts: a screen, aluminum alloy profiles, LED lights, and a baseboard. The four sides of the light box are framed by aluminum alloy profiles, fixed with connectors. The screen is secured in the slot of the aluminum alloy profiles, and the LED lights are mounted on the baseboard.
Always on time
Acceptable price
Excellent quality
| Product Information | Single-sided lux light box-AF6502 | Product Thickness | 65mm |
Aluminum Frame Face Width | 2mm | Light Source | Aluminum PCB LED |

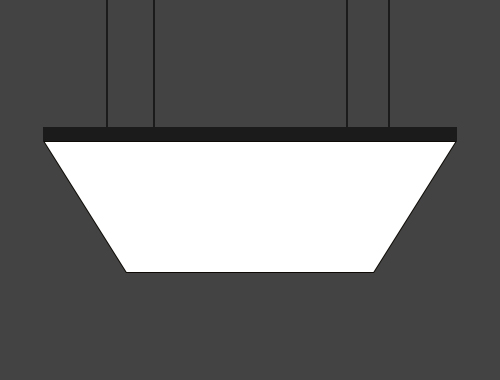

| Installation Mode | Hoisting, Mounting, Embedded | Voltage | DC12V/DC24V |
| Product Size | Customizable | Frame Color | Silver or Black (can be customized) |

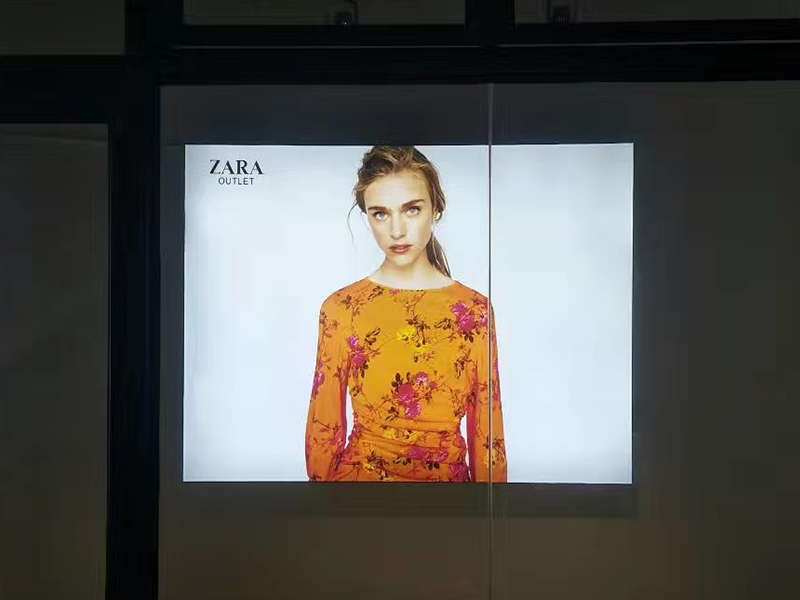

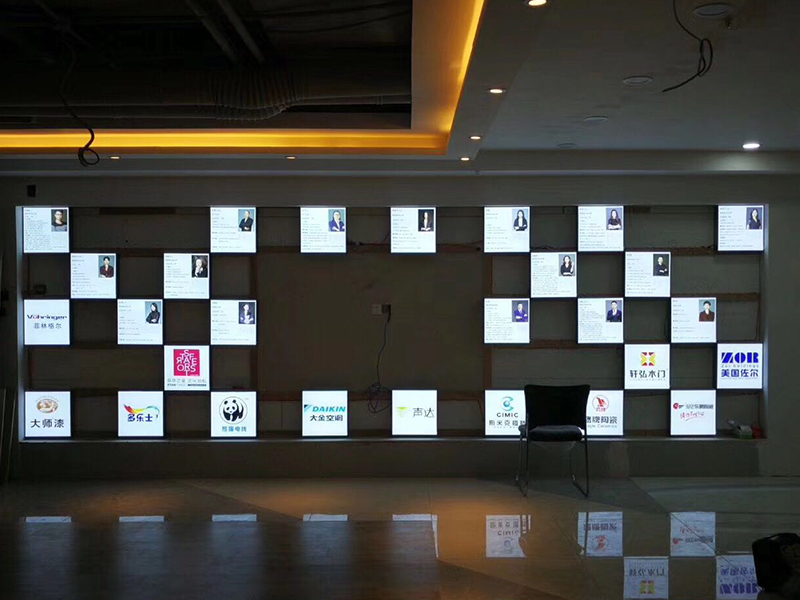

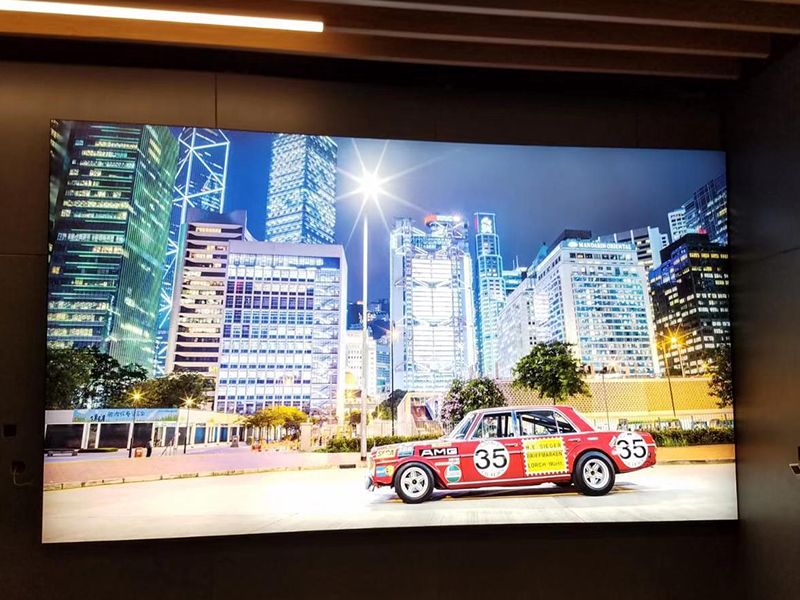

Graphic Changing Way | Easily remove the canvas | Application Places | - Commercial venues - Transportation hubs - Exhibitions and displays - Public spaces - Diningand entertainment - Office spaces - Medical institutions |
| Color Temperature | 3000K-6500K | Certification | CE, UL, RoHS, BSCI |
Product Specification Sheet
